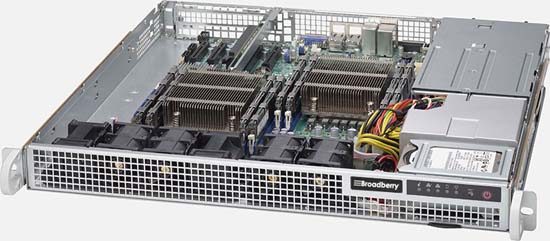

CyberServe Xeon SP2-102®
Short Depth, Redundant Power Option, Dedicated Remote Management port with IPMI & Remote KVM Management
Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.
The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.
This system can be configured with SATA drives for cost-effective 12gb/s storage.
The CyberServe Xeon SP2-102 boasts high density storage and ultimate energy efficiency, catering for up to 2x High-Performance 2.5" SSD or Hard Drives
Designed for the most demanding tasks, the dual socket range of CyberServe Xeon SP® servers support the latest Intel Xeon® processor Scalable series
Powered by the revolutionary Intel Xeon SP processor range, CyberServe Xeon SP servers deliver massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.
The Broadberry CyberServe Xeon SP® range has been built from the ground up for private / hybrid cloud environments, clustering, virtualised infrastructure and database management.
The Broadberry CyberServe Xeon SP® range has a completely redesigned QPI system, producing up to 21% improvement in data efficiency as well as a 50% reduction in idle power.
All Broadberry CyberServe Xeon SP® rack servers are compatible with iPMI functionality, enabling complete control and management of your server through IP.
Boasting Intel Integrated I/0 on the processor, Broadberry CyberServe Xeon SP® servers accelerate data availability to the processing cores, reducing latency by up to 30%.
Intel Advanced Vector Extensions 512, the latest x86 vector instruction set with up to two fused-multiply add units and other optimisations, accelerates performance for the most demanding computational tasks.
Improving performance across applications and platforms, Intel QAT enhances security and compression performance in cloud, networking, big data, and storage applications.
The CyberServe Xeon SP® range replaces InfiniBand technology with a newer, more advanced interconnect called Omni-Path, allowing for 100Gbps bandwidth with no loss of PCIe lanes.
The CyberServe Xeon SP2-102 has been carefully crafted to ensure full compatibility with VMWare, making it an ideal choice for use as a virtualisation server
The CyberServe Xeon SP2-102 is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.
1U Intel Xeon Scalable Processor Series, Dual Processor, Fixed SATA Drive Bays, Bronze, Silver, Gold Series Xeon, Redundant Power Supply Option, Dedicated Remote Management port with fully featured IPMI & Remote KVM Management as standard, also includes Slide Rails
One of our most popular Xeon mid-range server fits most enterprise workload requirements. The server is available with single or redundant power supply options, it is semi short depth and includes slide rails in the box.
The Server has 2 fixed drive bays which can fit 2.5" Hard Drives or SSD Drives. It includes on-board basic SATA RAID levels 0,1,5,10, and can also support SAS Drives if you add a SAS HBA or RAID Controller. The Server also includes USB3 Ports and dual gigabit server LAN ports and a dedicated IPMI Remote Management port and KVM over IP. Ideal as a multi-purpose server, with all the features you would expect from a High End Server.
The CyberServe Xeon SP2-102 is a 1U rackmount server configurable with 2x Xeon Scalable Processor Gen 2 series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon SP2-102 has 2x 2.5" SATA Fixed Drives and is ideal for those requiring a combination of high performance and density with its 8x DDR4 ECC Registered memory banks providing up to GB of high-performance server memory. The CyberServe Xeon SP2-102 boasts as just a few of its core features.
The CyberServe Xeon SP2-102 rackmount server with 2 fixed hard drives offers a cheaper alternative to servers with hot-swappable drives, bringing the total system cost down when hot-swappable hard drives are not required. The CyberServe Xeon SP2-102 rackmount server with 2 fixed hard drives offers a cheaper alternative to servers with hot-swappable drives, bringing the total system cost down when hot-swappable hard drives are not required.Storage Technology
The CyberServe Xeon SP2-102 supports 2x 2.5" desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.
Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The CyberServe Xeon SP2-102 rackmount server with 2 fixed hard drives offers a cheaper alternative to servers with hot-swappable drives, bringing the total system cost down when hot-swappable hard drives are not required.Configure for your Network
The CyberServe Xeon SP2-102’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.
Configure the CyberServe Xeon SP2-102 to match your application I/O demands and network infrastructure with up to 1x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors.
Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon SP2-102 is totally customisable with a wide range of robust I/O connectivity options.
IPMI 2.0 & KVM over IP
Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon SP2-102 at no extra cost.
Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.
Check the health of the CyberServe Xeon SP2-102 components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.Â
The CyberServe Xeon SP2-102 IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.
Expand with PCI-Express Expansion
Configure the CyberServe Xeon SP2-102 with up to 1x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon SP2-102 is a flexible platform for a wide-range of applications.
The CyberServe Xeon SP2-102 rackmount server with 2 fixed hard drives offers a cheaper alternative to servers with hot-swappable drives, bringing the total system cost down when hot-swappable hard drives are not required.We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.
You can order by either calling us and speaking to one of our experienced US technical sales team, or pressing "Email Quote".
Leading Security
We take security seriously. Broadberry servers offer the latest technologies including TPM, self-encryption and military-grade FIPS certification.
Best Price Guarantee
Broadberry offer a Best Price Guarantee on all server and storage solutions. You won't find the same spec cheaper anywhere else.
Ease of Management
Feature-rich IPMI with out of band management and redfish API to allow easy management and monitoring of your Broadberry systems.
Customer Service
Unlike other leading manufacturers, Broadberry assign all customers a dedicated account manager with direct access. There’s no call centres!
Trouble-Free Integration
Our trained engineers will pre-configure your server to your requirements, and are here to help over the phone when your server arrives.
3-Year Warranty
All Broadberry solutions come with a comprehensive 3-5 year warranty, with a range of upgraded warranty options available.
Easy Installation
From clip-in slide rails to pre-configured RAID and pre-installed OS, our engineers ensure installation fast and simple!
Standardisation
Our open-platform approach offers high compatibility with your existing infrastructure and no vendor-lockin.
Flexibility
Every business is different. Configure every element of your solution to your requirements using our powerful online configurator.
Scalability
Our servers are built to grow with your organization, whether that be by purchasing additional drives, or additional scale-out nodes.
Innovation
Since the introduction of the first Broadberry PC in 1989, we’ve continually innovated and responded to emerging technologies and markets.
GSA Schedule Holder
We offer rapid GSA scheduling for custom configurations. For specific hardware requirements we can have your configuration posted on the GSA Schedule within 2-4 weeks.
The Intel Xeon Scalable Processor Family improves upon previous generation Intel Xeon E5 and E7 V4 generations in just about every metric.
 |
 |
 |
 |
|---|---|---|---|
| Entry Intel® Xeon® Bronze processors are performance optimized for small business and basic storage servers. |
Mid Intel® Xeon® Silver processors offer the hardware-enhanced performance and security required for data center compute, network, and storage optimized for mid-sized and growing IT organisations. |
High Intel® Xeon® Gold processors offer high performance, advanced reliability, and hardware-enhanced security optimized for demanding data center, hybrid-cloud compute, network, and storage workloads. |
Enterprise Intel® Xeon® Platinum processors offer the industry's best performance for mission-critical and hybrid cloud workloads, real-time analytics, machine learning, and artificial intelligence, with monumental leaps in I/O, memory, storage, and network technologies. |
| up to 8 Cores | up to 12 Cores | up to 22 Cores | up to 28 Cores |
| up to 2 Sockets | up to 2 Sockets | up to 4 Sockets | up to 8+ Sockets |
| up to 1.5TB | up to 1.5TB | up to 6TB | up to 12TB |
The CyberServe Xeon-SP range has been designed from the ground up for the latest industry advances for today's datacenter applications.
Powered by Intel Xeon Scalable Processors, the CyberServe Xeon-SP range of servers have the design flexibility to thrive across common applications and mission critical operations or to harness actionable insights from advanced real-time analytics and emerging imperatives like artificial intelligence, 5G, autonomous driving and more.
This agility enables you to seize new business opportunities from our increasingly data-fueled smart and connected world.
| Intel Xeon Processor E5-2600 v4 | Intel Xeon Scalable Processor | |
|---|---|---|
| Cores Per Socket | Up to 22 | Up to 28 |
| Threads Per Socket | Up to 44 threads | Up to 56 threads |
| Last-level Cache (LLC) | Up to 55 MB | Up to 38.5 MB (non-inclusive) |
| QPI/UPI Speed (GT/s) | 2x QPI channels @ 9.6 GT/s | Up to 3x UPI @ 10.4 GT/s |
| PCIe* Lanes /Controllers /Speed(GT/s) | 40 / 10 / PCIe 3.0 (2.5, 5. 8 (GT/s) | 48 / 12 / PCIe 3.0 (2.5, 5,8 GT/s) |
| Memory Population | 4 channels of up to 3 RDIMMs, LRDIMMs, or 3DS LRDIMMs |
6 channels of up to 2 RDIMMs, LRDIMMs, or 3DS LRDIMMs |
| Max Memory Speed | Up to 2400 | Up to 2666 |
| TDP (W) | 55W-145W | 70W-205W |
By consolidating servers onto a VMware compatible Broadberry server, you can enjoy a reduction in your IT infrastructure footprint.
The virtualisation market has grown exponentially since the mid-2000s and as has the demand for servers able to run VMware virtualisation software. While the majority of servers will be able to run VMware, these rack servers have been specially designed and then sent off for VMware ESXI 6.0 certification.
Built from the ground up for compatibility, these servers are ideal for running your virtualised IT infrastructure.These VMware certified servers are based on hardware that is enterprise-grade and industry compliant. This range servers can be configured with up to 16 cores for processing and up to 1/2 TB of memory.
